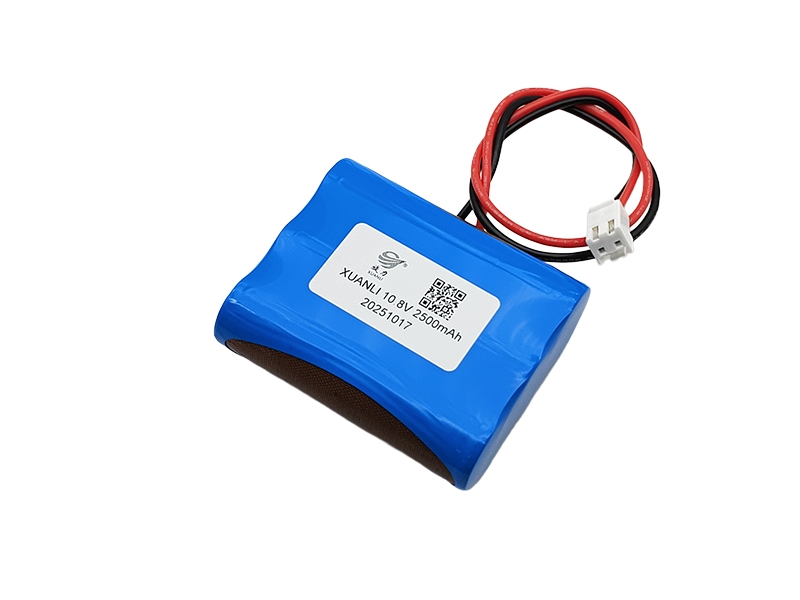

10.8V cylindrical lithium battery product model: XL 10.8V 2500mAh
Technical parameters of 10.8V cylindrical lithium battery (Specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
· Single cell voltage: 3.6V
The nominal voltage of the battery pack after assembly: 10.8V
· Single battery capacity: 2.5Ah
· Battery combination method: 3 series and 1 parallel
The voltage range of the combined battery is 9.0V-12.6V
· Battery capacity after combination: 2.5Ah
· Battery pack power: 27Wh
· Battery pack size: 22*56*69mm
· Maximum discharge current: <2.5A
· Instantaneous discharge current: 5A-7A
· Maximum charging current: 0.2-0.5c
· Charge and discharge cycles: > 500 times
· Main chips: (Seiko, TI
10.8V cylindrical lithium battery
· Comply with relevant national standards and requirements for batteries
All battery products are calibrated and tested before leaving the factory and can be used directly and normally.
